3D printed macro slider + lightbox

Machine Design
1

The macro slider can move the ‘Lightbox’ about 5 centimeters.

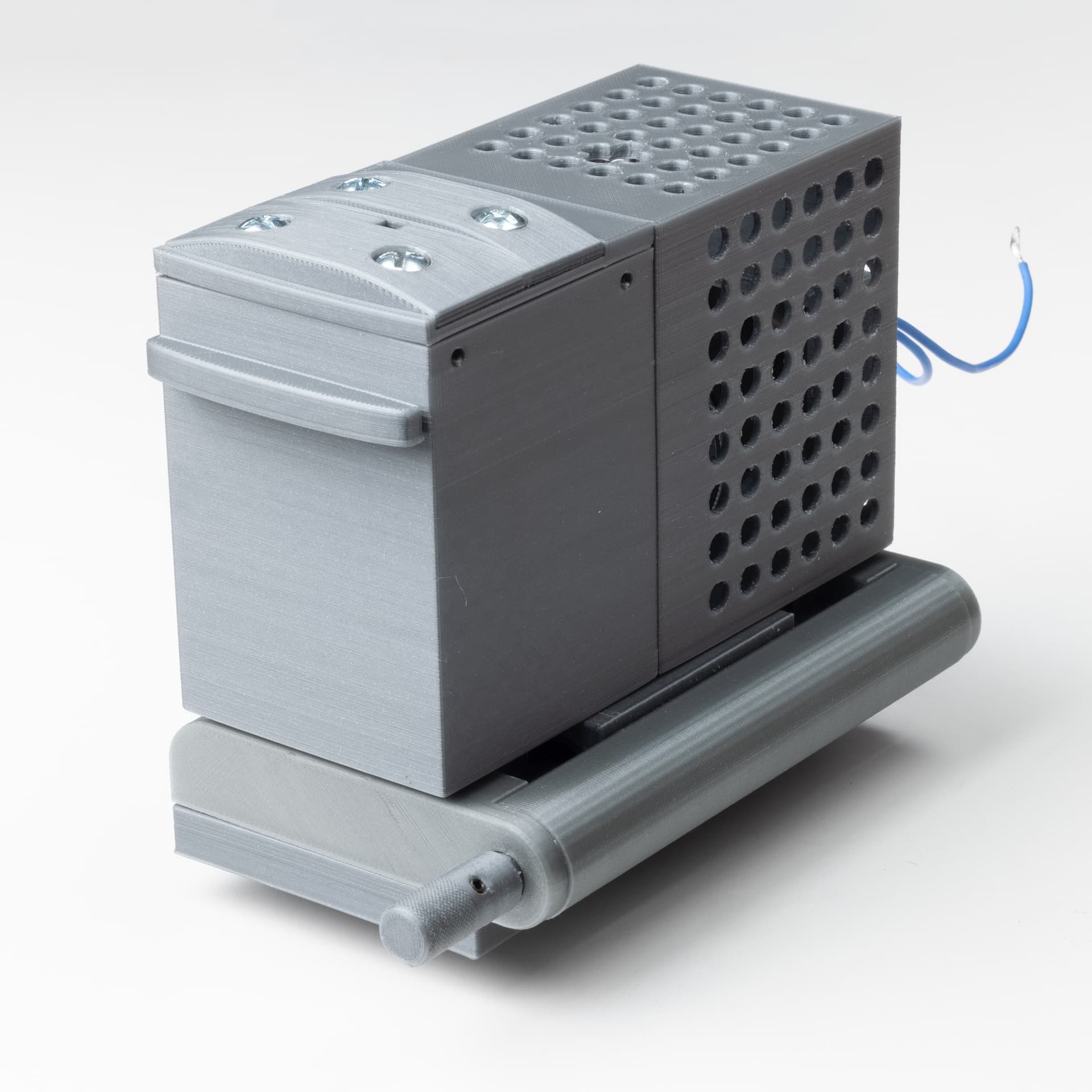

The ‘Lightbox’ consists of:
• lamp housing with ventilation holes (12 Volt Philips Master Ledspot ExpertColor 3000K)
• mirror housing with mirror (45 degrees)

  • also a drawer for diffuser glass
  • and on top an 8mm film gate

lightbox+slider._small
lightbox+slider._small1920×1920 146 KB
