Cameras from China

1

I use this camera from China for frame-by-frame scanning - https://aliexpress.ru/item/32913814498.html
lens - https://aliexpress.ru/item/32831833813.html
I scan 8mm and 35mm films. Resolution 2592x1944.
Here are some examples -
35mm https://youtu.be/SmBO-yMQIXo
8mm - - YouTube

I want to buy such a camera -
https://ru.aliexpress.com/item/4000453924738.html
Is there anyone on the forum who uses such a camera? Is there an example?

1 Like
2

I’ve seen your 8mm example in youtube: marvelous!

Could you pls share a picture of your setup, especialy the film-Lens-camera area.

3

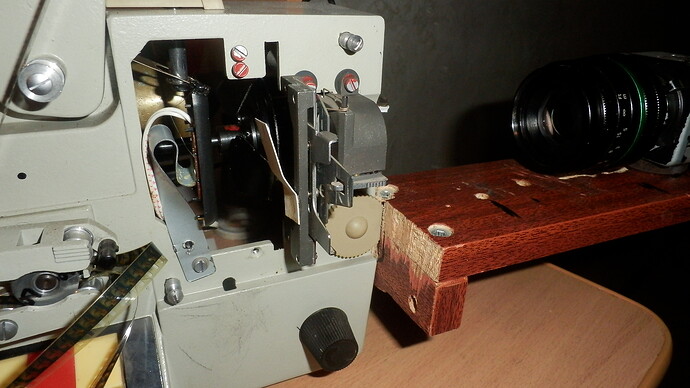

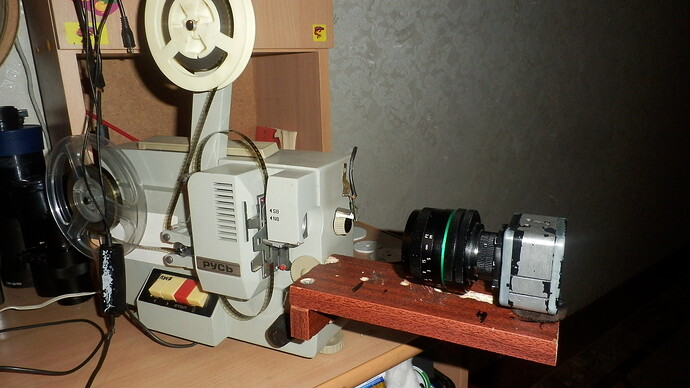

All the simplest -

PC200036
PC2000361920×1080 814 KB

PC200043
PC2000431920×1080 785 KB

1 Like
4

Hello, After a long time.
Have seen your transfer today. Fine. I have few questions.

  1. How did you got frame by frame (The specifications does not say about single frame capture.)
  2. What was the format jpg or RAW
  3. Did you extract sound with AEO?
    Highly appreciate your answers.
    Regards.
5

Udayarangi

Hello
During a pause in the movie projector, the reed switch and magnet close the mouse button on the PC in the S-EYE capture software. I save frames in bmp format. I extract the AEO sound.

1 Like
6

Excellent.Thanks. Must have a look at S Eye.

7

Another question. It seems that you were driving a projector with a separate motor. How did you coupled the motor to the projector?

8

Udayarangi

Motor reducer window regulator from the car. Power supply with direct current 7-12 volts from a separate transformer.

1 Like
